Mateu

Not found

Status: ✅ Implemented

Intent

Section titled “Intent”

A link outlives what it points to. A booking is deleted, a customer is merged into another, an id is mistyped in a shared URL — and the user opens /reservas/FO-X6JB7F. The screen behind that route cannot load its record, and the worst answers are the common ones: an error toast over an empty page, or a stack trace in the log for something that is not a bug.

The right answer is a page that says what happened — this record is not here — and offers a way back, inside the app’s shell so the menu is still there.

Solution

Section titled “Solution”

Throw java.util.NoSuchElementException while the route loads, with a message written for the user. Nothing else to do: no screen-by-screen handling.

@Override
public Stay view(String id, HttpRequest httpRequest) {
  return stays.findById(id)
      .orElseThrow(() -> new NoSuchElementException("Booking " + id + " not found"));
}

What counts as “while the route loads”: the view’s constructor, a RouteHandler, a Navigable.view(id), a CRUD’s findById for its detail or edit route, and the mapping of the loaded view — anything that runs for the initial load of a route (an empty action id, or __load__). Mateu then:

  • answers a NotFound component (NotFoundDto {title, message, backRoute, backLabel} on the wire) as the content of the route — not an error message. The renderers paint it in place of the page, keeping the app shell (top bar, menu) around it;
  • uses the exception’s message as the heading;
  • logs one INFO line (Not found: route /bookings/FO-X6JB7F — Booking FO-X6JB7F not found) instead of an ERROR with a stack trace;
  • offers a way back to the parent route (/bookings/FO-X6JB7F → /bookings), or the app home for a top-level route.

A route that resolves to nothing at all (no view, no definition) answers the same page, headed Page not found — it used to be a bare red Not found. text.

The generic fallback

Section titled “The generic fallback”

When the exception carries no message — or carries Optional.orElseThrow()’s own “No value present”, which says nothing to a user — the heading is generic and names the missing id (the last segment of the route): «No se ha encontrado FO-X6JB7F» / «Not found: FO-X6JB7F». The secondary line is «Puede que se haya borrado o que el enlace no sea correcto.» / “It may have been deleted, or the link is wrong.”, and the way back reads Volver / Go back. The server picks Spanish or English from the request’s Accept-Language (any other language gets English); the renderers fall back to the same texts in the page’s language if a NotFound arrives without them.

What it does not change

Section titled “What it does not change”
  • Other exceptions keep today’s behaviour: an error message, and an ERROR log with the stack.
  • A NoSuchElementException thrown by an action (a button) on a screen that does exist is still an error message. Replacing the screen under the user’s click would be wrong: the screen is there, something it looked up is not.

Returning it yourself

Section titled “Returning it yourself”

NotFound is an ordinary component (io.mateu.uidl.data.NotFound), so a view can also return one directly — or a YAML definition declare type: NotFound — when it wants a not-found page with its own texts or way back:

return NotFound.builder()
    .title("This booking no longer exists")
    .message("It was cancelled and archived on 3 October.")
    .backRoute("/bookings")
    .backLabel("See bookings")
    .build();

How it looks

Section titled “How it looks”

Vaadin — an icon, the heading (an <h2>), the line and the way back, centered and drawn with the theme’s Lumo tokens, so it follows light and dark:

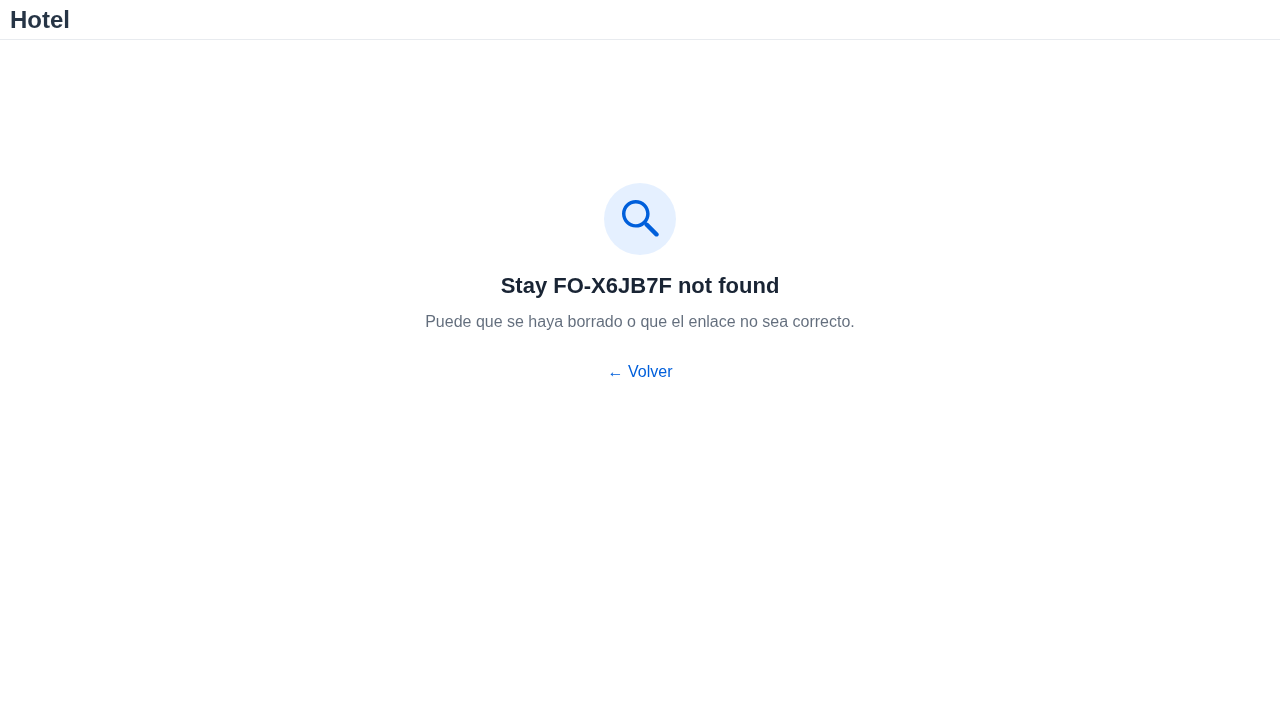

Not found page in the Vaadin renderer, light

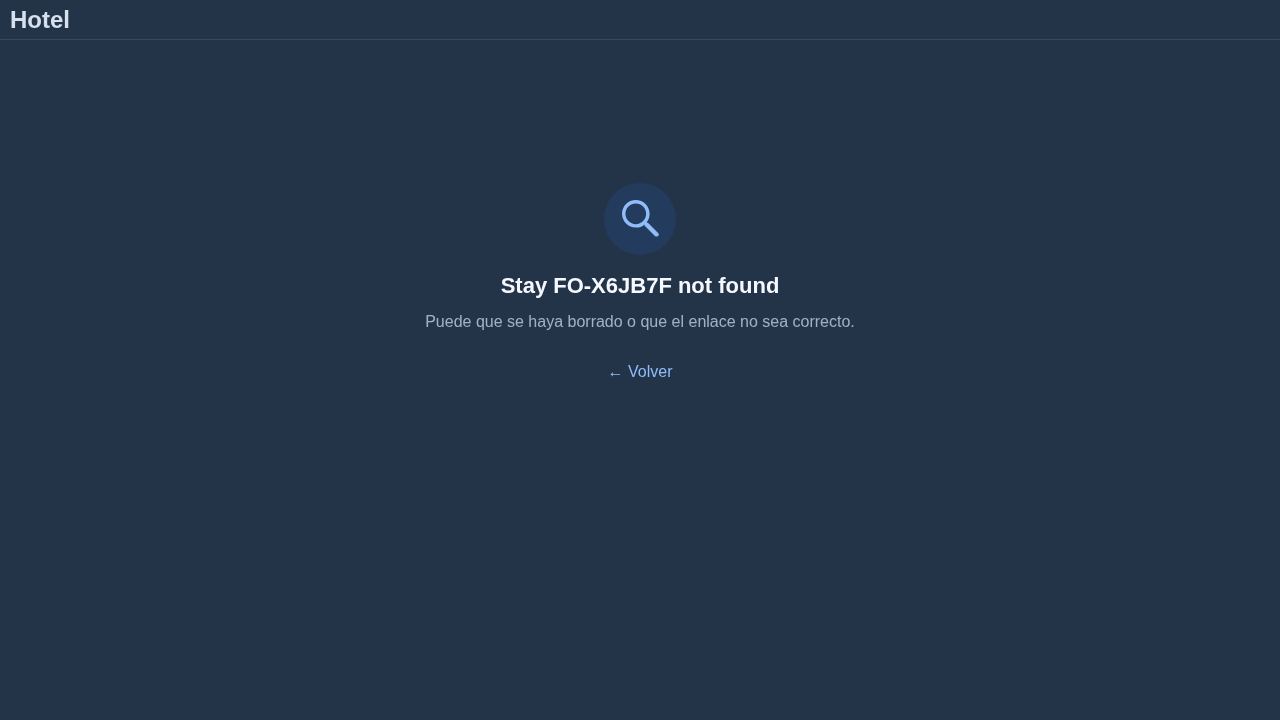

Not found page in the Vaadin renderer, dark

Redwood — Redwood’s own idiom for this, the Spectra oj-sp-empty-state in its full-page layout (its illustrated background, primary and secondary text, and the way back as its navigation link), under Redwood’s search icon. The page header is hidden: the empty state carries the heading, and a visually hidden <h2> gives it to screen readers as a heading.

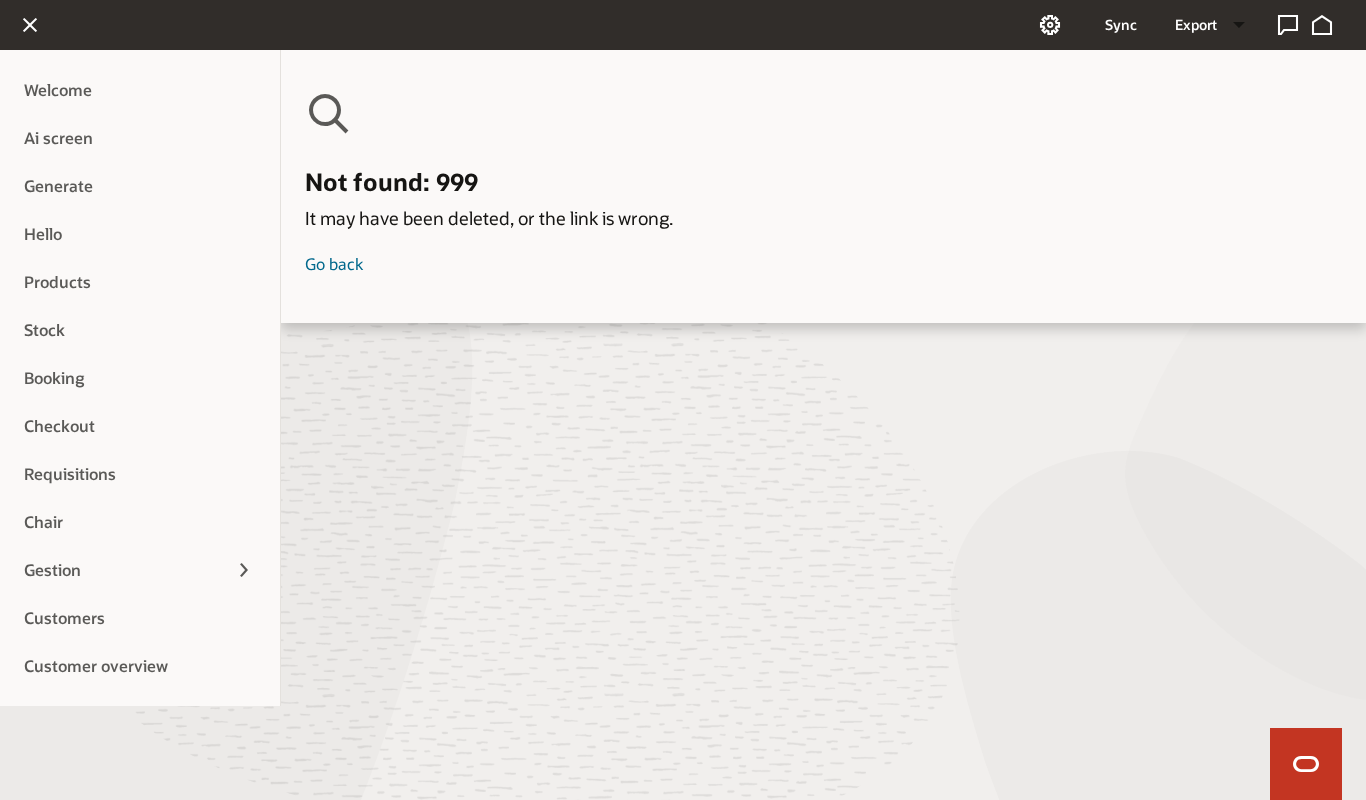

Not found page in the Redwood renderer

The way back is an in-app navigation in both — the same one a menu click makes — not a page reload.

Notes

Section titled “Notes”
  • The Java backend only for now: the C# and Python ports still answer an error for a missing record.
  • Tests: NotFoundPageSyncTest (backend), notFoundRenderer.test.ts (Vaadin), the not found cases of the Redwood contract tests (poc/test.mjs), and e2e/tests/shared/not-found.spec.ts against every adapter.
