Fluent components

Mateu supports both declarative UI and fluent components.

👉 You can mix both approaches freely.

Even inside a declarative page, you can include any component that implements:

io.mateu.uidl.fluent.Component

Mixing declarative and fluent

A page does not have to be fully declarative or fully fluent.

You can keep the simplicity of declarative UI for state and actions, and introduce fluent components only where you need more control.

Example: declarative only

package io.mateu.mdd.demoadminpanel.infra.in.ui;

import io.mateu.uidl.StyleConstants;
import io.mateu.uidl.annotations.Button;
import io.mateu.uidl.annotations.Style;
import io.mateu.uidl.annotations.UI;

@UI("/simple")
@Style(StyleConstants.CONTAINER)
public class SimplePage {

    String name;

    @Button
    void greet() {}

}

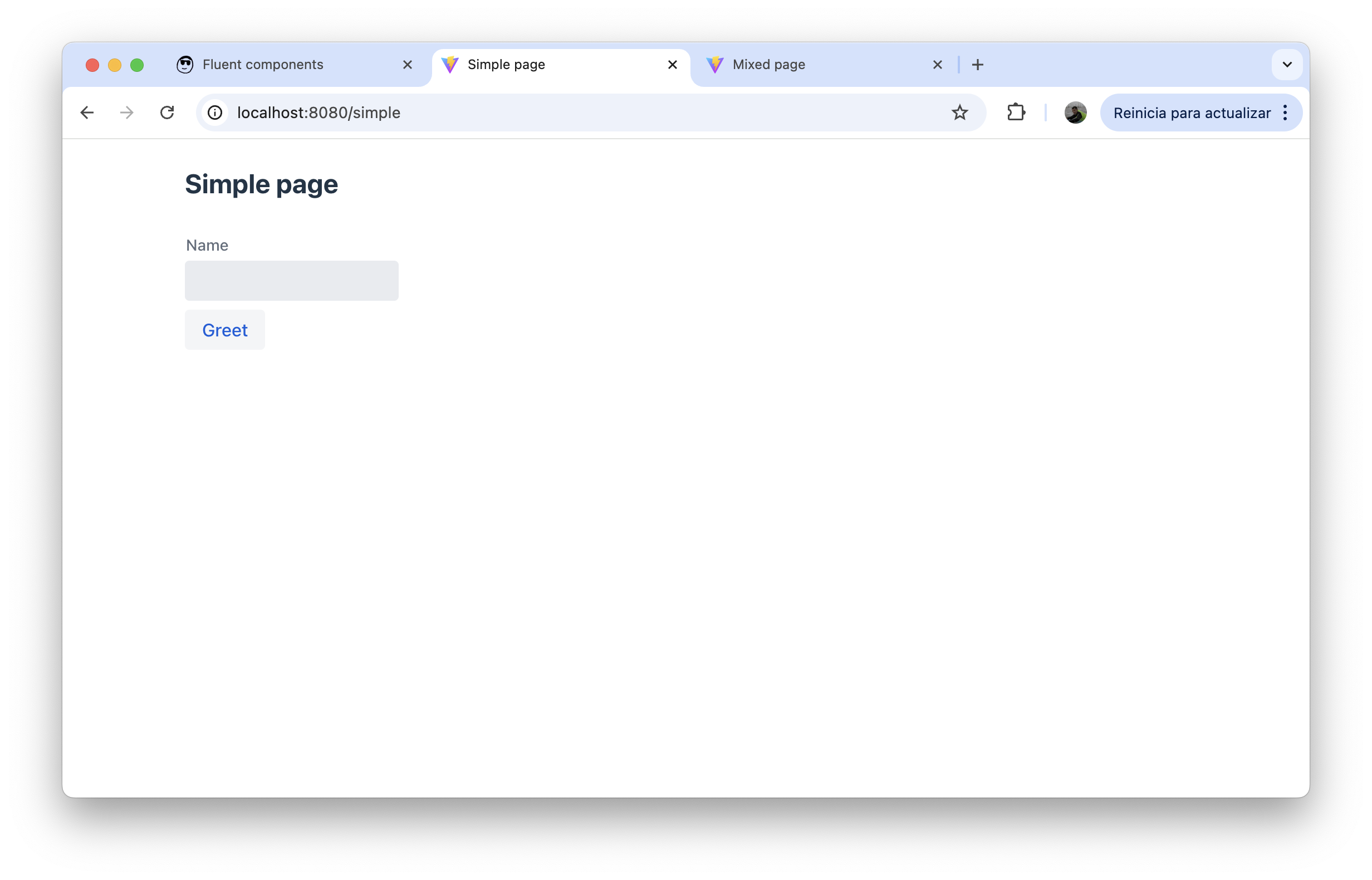

This is a fully declarative page:

• name becomes a text input
• greet() becomes a button
• layout and rendering are inferred automatically

Example: declarative + fluent

package io.mateu.mdd.demoadminpanel.infra.in.ui;

import io.mateu.uidl.StyleConstants;
import io.mateu.uidl.annotations.Button;
import io.mateu.uidl.annotations.FormLayout;
import io.mateu.uidl.annotations.Style;
import io.mateu.uidl.annotations.UI;
import io.mateu.uidl.data.Avatar;
import io.mateu.uidl.data.Chart;
import io.mateu.uidl.data.ChartData;
import io.mateu.uidl.data.ChartDataset;
import io.mateu.uidl.data.ChartOptions;
import io.mateu.uidl.data.ChartType;
import io.mateu.uidl.data.HorizontalLayout;
import io.mateu.uidl.fluent.Component;

import java.util.List;

@UI("/mixed")
@Style(StyleConstants.CONTAINER)
@FormLayout(columns = 1)
public class MixedPage {

    String name;

    Component stats = new HorizontalLayout(
            Chart.builder()
                    .chartType(ChartType.doughnut)
                    .chartData(ChartData.builder()
                            .labels(List.of("Scrap", "Create release", "Deploy"))
                            .datasets(List.of(ChartDataset.builder()
                                    .label("label 1")
                                    .data(List.of(1d, 2d, 3d))
                                    .build()))
                            .build())
                    .chartOptions(ChartOptions.builder()
                            .maintainAspectRatio(false)
                            .build())
                    .build(),
            new Avatar("Mateu")
    );

    @Button
    void save() {}

}

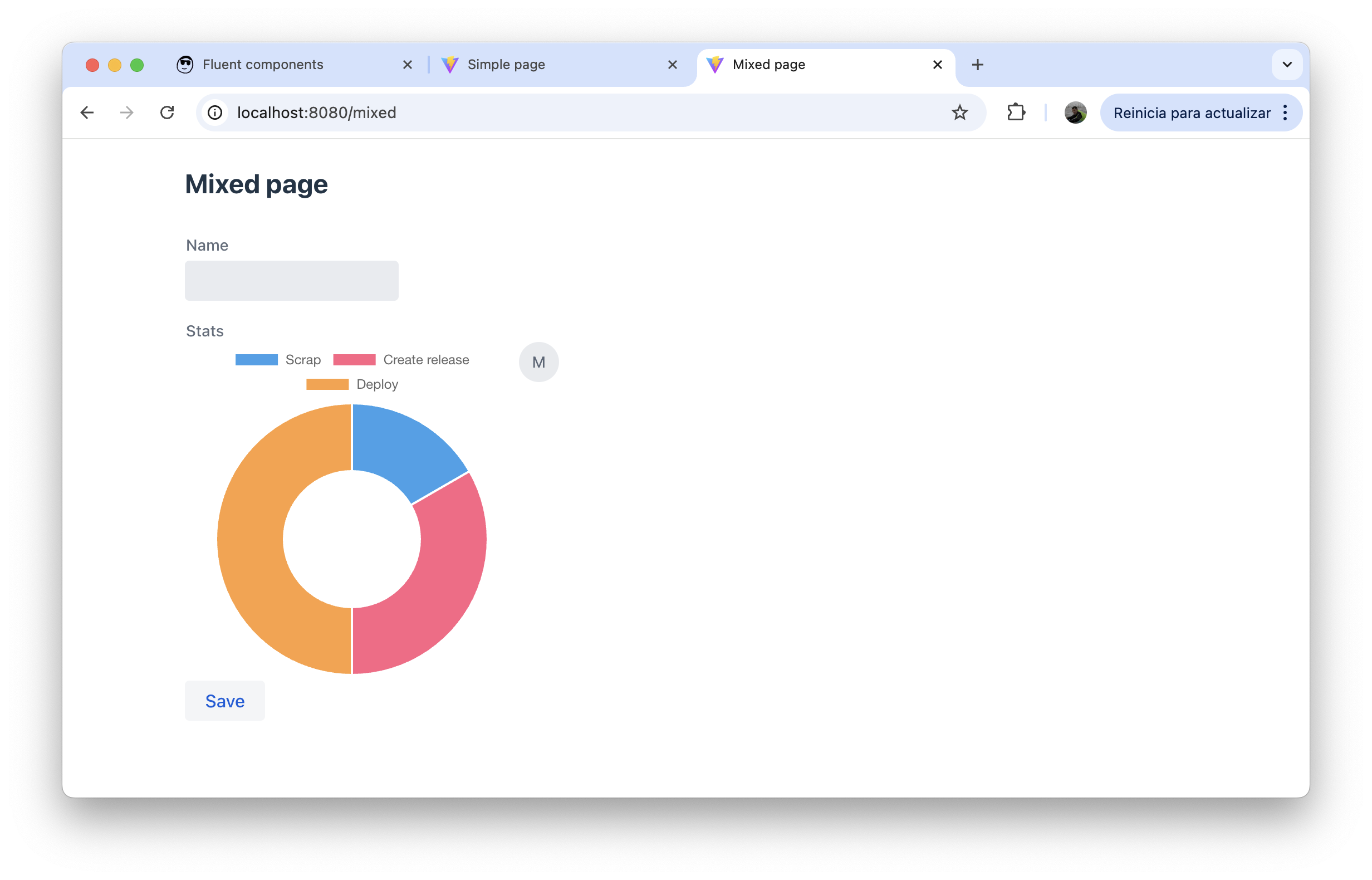

This page is still declarative, but it embeds fluent components directly.

The stats field is a fluent Component, so Mateu renders that custom UI block inside the page.

This is the key idea:

• declarative → state, actions, standard structure
• fluent → custom composition where needed

Mental model

• declarative → structure, state, behavior
• fluent → fine-grained UI composition
• both → same rendering engine

When to use fluent components

Use fluent components when:

• you need custom layouts
• you want reusable UI blocks
• you need more control than annotations provide
• you want to introduce charts, cards, avatars, or other richer components inside a standard page

Stay fully declarative when:

• forms are simple
• CRUD is standard
• inferred rendering is enough

Categories of components

Layout and structure

• VerticalLayout
• HorizontalLayout
• FormLayout
• SplitLayout
• AccordionLayout
• TabLayout
• BoardLayout
• CarouselLayout
• MasterDetailLayout
• Scroller
• Container
• FullWidth

Forms and inputs

• Form
• FormField
• FormItem
• FormRow
• FormSection
• FormSubSection
• CustomField
• Button
• MessageInput

Data display

• Grid
• Listing
• VirtualList
• Directory
• Card
• Details
• KPI
• Badge
• Chart
• Markdown
• Text
• Image
• Avatar
• AvatarGroup

Navigation and app structure

• App
• Page
• MenuBar
• Breadcrumbs
• Anchor
• Tab

Feedback and overlays

• Dialog
• ConfirmDialog
• Notification
• Tooltip
• Popover
• ProgressBar
• CookieConsent

Rich / specialized

• Bpmn
• Map
• MicroFrontend
• Element
• Icon

State and infrastructure

• State
• AppState
• Data
• AppData
• FutureComponent

See also

• Supported components
