Drag rows to a destination

Status: ✅ Implemented

Intent

Some operations are about moving things: folio charges from one billing window to another, reservations into a group, items into a cart. A form (“pick the charges, pick the window, press Move”) works, but the natural gesture is to drag the rows where they belong — as OPERA Cloud does with folio windows and the Trip Composer.

Solution

Two pieces, independent of each other:

• @DragRows("type") on a listing (a Listing, an AutoCrud) makes its rows draggable — the selected rows, or the one under the pointer.
• DropZone is a titled area wrapping any content that accepts a drag type. Dropping rows of that type on it runs its actionId with its parameters plus _draggedIds (the dragged rows’ ids) and _dragType: the action knows both ends.

@UI("/folio-windows")
@DragRows("charge")
public class FolioWindows implements Listing<ChargeRow>, HeaderSupplier {

    @Override public boolean selectionEnabled() { return true; }

    @Override
    public List<Component> header(HttpRequest rq) {
        return List.of(DropZone.builder()
                .accept("charge").actionId("moveCharges").parameters(Map.of("window", 2))
                .title("Window 2").subtitle("Guest (cash)")
                .content(List.of(new Text("w2", "13.20 € · 1 charge")))
                .build());
    }

    // moveCharges reads _draggedIds and window, moves the charges, and returns the page again
}

Returning the page from the action re-renders it — the zones’ totals and the listing’s rows, which reload like on opening.

Where it works

• Vaadin — vaadin-grid row dragging (rowsDraggable) and the shared mateu-drop-zone.
• Redwood — JET’s own oj-table drag and drop (dnd.drag.rows); the zone is an atom whose content shows as text lines. The header components of a listing page (HeaderSupplier) are drawn above the table.
• IntelliJ plugin — JTable drag with a transfer handler, and a titled panel as the zone.
• React Native — no drag on touch: with rows selected and a matching zone on screen, a Move to… button opens a picker of the zones.
• .NET: [DragRows("charge")] + DropZone; Python: @drag_rows("charge") + DropZone.

The drag type travels as a MIME type (application/x-mateu-<type>), so a zone can tell while the drag is still over it — before it may read the data — whether what comes is its kind.

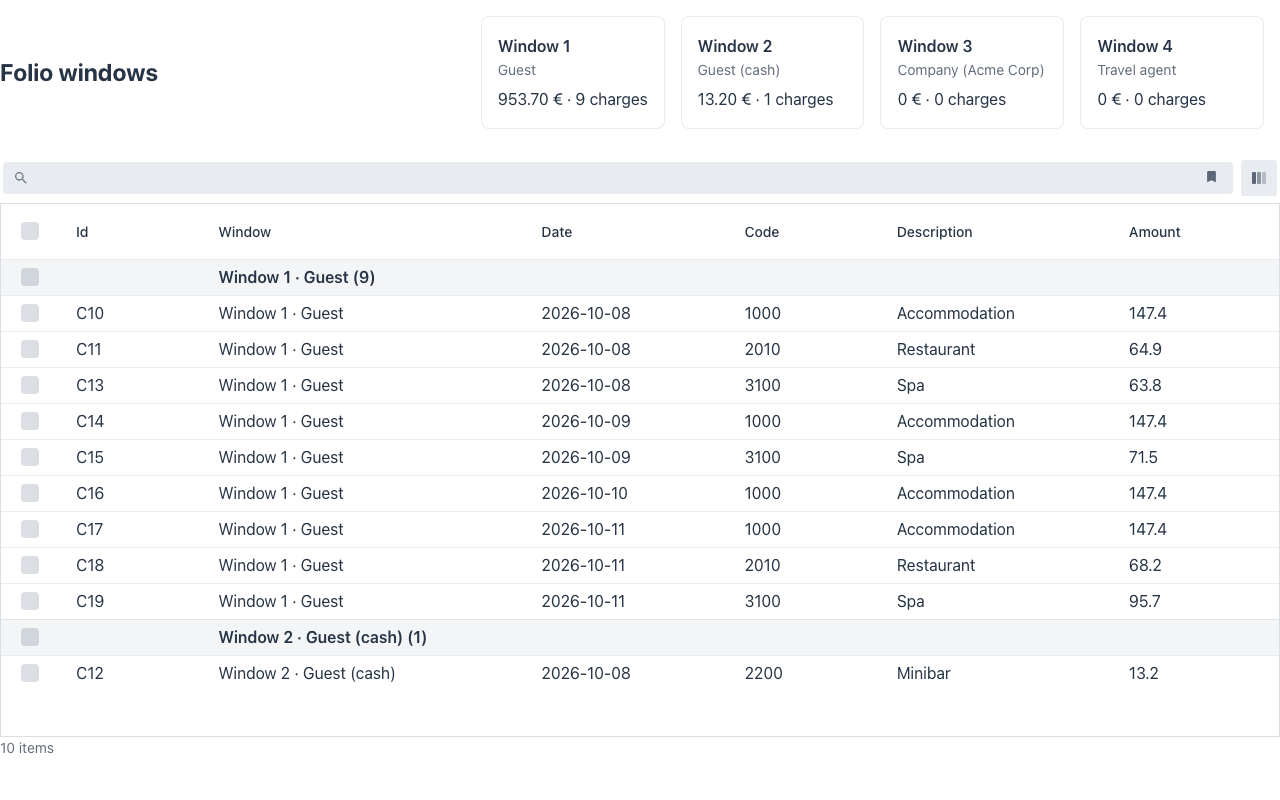

Demo: demo-vb-pms → Financials → Windows.
