Native Renderers

Mateu’s API is not limited to web browsers. Because the renderer is decoupled from the backend, any client that speaks HTTP and understands the Mateu component tree can render a Mateu application natively.

Native renderers trade the browser’s zero-install convenience for better performance and an OS-native feel — and, on the desktop, for a docking/tabbed productivity workspace the browser can’t offer. (For when to prefer web vs. native, see Web or native?.)

Three native renderers are available out of the box:

• JavaFX — a desktop power-user workspace (tabs + docking).
• React Native — iOS & Android, built with Expo/TypeScript.
• Compose Multiplatform — one Kotlin codebase that runs on desktop, iOS and Android (and, soon, web).

Desktop — JavaFX

The JavaFX renderer runs your Mateu backend as a native desktop application on Windows, macOS, and Linux. No browser is required. The UI is rendered using JavaFX controls and layouts, giving you a native look and feel on each operating system.

Why a native desktop app: productivity

The desktop renderer exists for one reason: power-user productivity. Browser tabs are isolated and heavyweight; a native desktop shell can give operational users — the people who live in the app all day (check-in desks, back-office, control rooms) — a workspace tuned for speed:

• Tabs — every menu entry opens in its own tab, each with its own independent navigation state (route, form data, CRUD page/filters). Users keep several screens open at once and switch instantly, instead of losing context on every navigation.

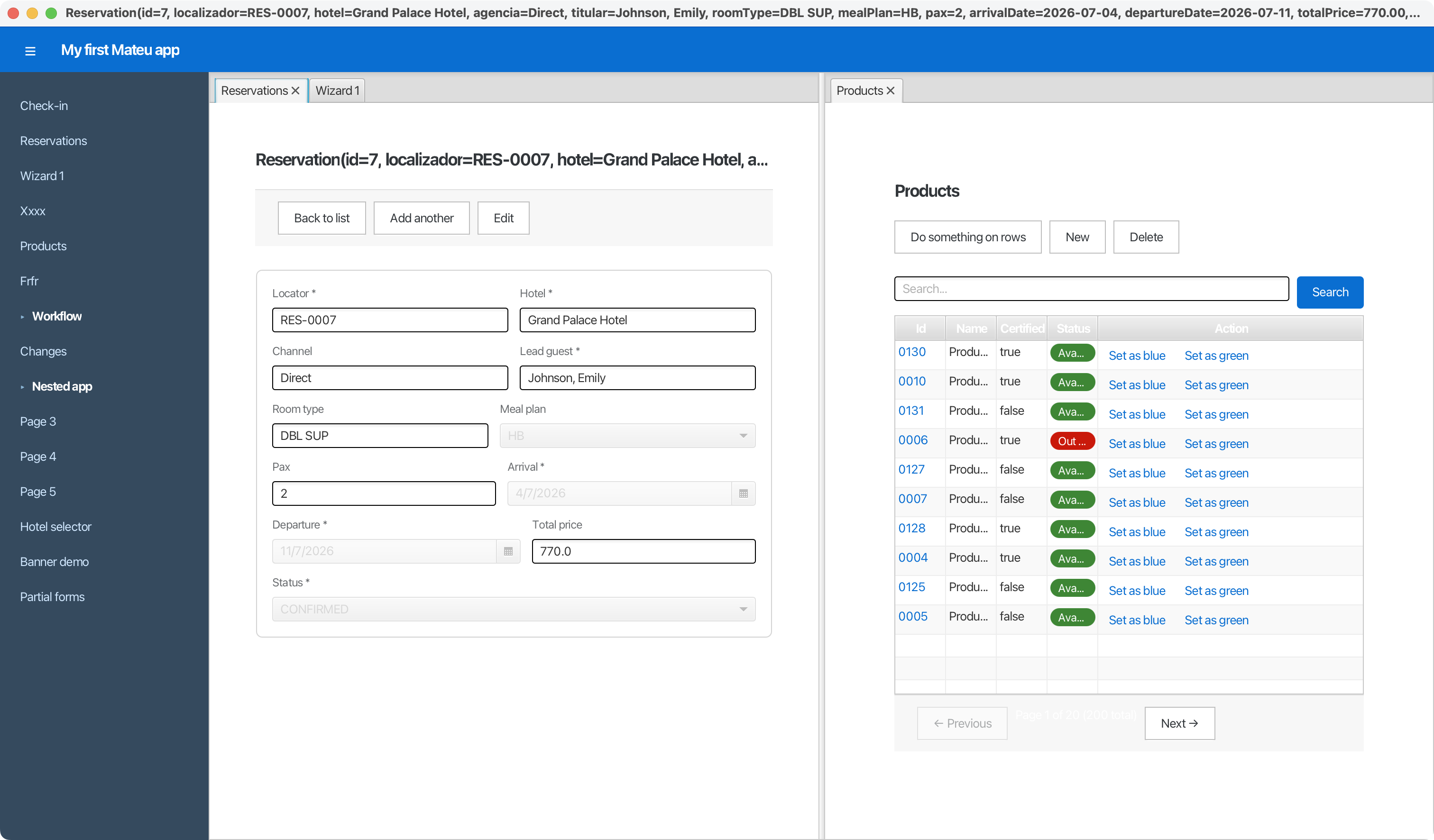

• Docking — tabs can be detached into floating windows and docked side by side (drag a tab to an edge to split the area). A user can put a reservations list next to the detail they’re editing, or spread work across multiple monitors — a layout a single browser tab can’t offer.
• Collapsible menu + hamburger — the left menu starts with submenus collapsed and can be hidden entirely, maximizing screen space for the actual work.

All of this is free for the application developer: you write the same @UI classes, and the desktop shell adds the windowing productivity layer on top of the exact same backend.

The docking workspace

The desktop renderer turns the content area into a dockable, multi-document workspace built on a DetachableTabPane (TiwulFX-Dock). Everything below works out of the box — there is nothing to configure in your @UI classes.

Tabs

• Clicking a menu item opens a new tab, or re-activates it if that screen is already open.
• Each tab carries its own navigation state — navigating inside one tab (opening a CRUD detail, paging a list, editing a form) changes only that tab; the others are untouched.
• Tab titles track the current view (its page title, truncated), with the full title shown on hover.
• Ctrl/Cmd + W closes the active tab. When no tab is open, the area shows a hint to pick a screen from the menu.

Docking (drag & drop)

• Reorder — drag a tab within its tab strip.
• Split / dock — drag a tab onto an edge of a pane to split the area and place the two views side by side (e.g. a list next to the detail you’re editing).
• Detach — drop a tab outside the window to pop it into a floating window, which inherits the app stylesheet and can be moved to another monitor.
• Dock back — drag a floating tab back onto any pane to re-dock it. Floating windows close automatically once their last tab is removed. All panes share a single dock scope, so any tab can dock into any pane.

Persistence

• The set of open tabs (and which one is selected) is saved on change and restored on the next launch, keyed by backend URL — reopening the app brings back the same workspace. (Split/floating arrangements are not restored; tabs reopen in the main pane.)

Navigation chrome

• Submenu groups in the left menu are collapsed by default and expand on click.
• A hamburger button shows/hides the whole sidebar to maximize working space.

How it works:

1. The app starts, makes an initial HTTP call to POST /mateu/v3/sync/_no_route, and receives the application metadata (title, menu, home route, variant).
2. Based on the variant field (NAVIGATION_LAYOUT, MENU_ON_LEFT, TABS, MEDIATOR), it builds a JavaFX window: a shared shell (header + collapsible menu) around a central dockable tab area.
3. Each menu entry opens a tab backed by its own navigation context. Subsequent calls within that tab fetch pages, forms, and CRUD listings, rendered as native JavaFX controls (TextField, ComboBox, TableView, DatePicker, etc.).

Architecture — shared shell vs. per-tab state:

State is split so that tabs are truly independent:

• AppShell (one per app) holds the shared services and the dockable tab container: the HTTP client, the global appState, the JavaFX stage, and the DetachableTabPane.
• AppContext (one per tab) holds that view’s navigation state: current route, serverSideType, component state, the component/action registry, CRUD orchestrator context, and inline validation.

Key classes:

Class	Role
MateuApp	Entry point — launches the JavaFX stage
MateuApiClient	HTTP client — calls POST /mateu/v3/sync/{route}
AppShell	App-wide shared state + the dockable DetachableTabPane; opens/activates tabs and saves/restores the open-tabs workspace
AppContext	Per-tab navigation state, action dispatch/bubbling, and client-side validation
AppRenderer	Builds the window: header, collapsible menu, and the dockable tab area
PageRenderer	Renders pages with header, toolbar, children, and bottom buttons
FormRenderer	Renders forms with a grid of fields
FormFieldRenderer	Renders individual fields (text, boolean, date, options, etc.) and inline validation errors
CrudRenderer	Renders tables with search, pagination, status badges, link columns, and row actions
ContainerRenderer	Renders sections, cards, tabs, accordion, split layout, badges, dialogs
DashboardRenderer	Renders MetricCard KPI tiles, the Scoreboard band, DashboardPanel tiles and the DashboardLayout grid
FoldoutRenderer	Renders FoldoutLayout — overview panel + lateral fold-out panels (click a strip to unfold; local UI state)
DisplayRenderer	Renders HeroSection headers, EmptyState placeholders, Skeleton loading blocks and the Gantt timeline
ComponentRenderer	Dispatcher — routes each component node to the right renderer

The desktop renderer also covers the UX-pattern components (MetricCard, Scoreboard, DashboardPanel, DashboardLayout, FoldoutLayout, HeroSection, EmptyState, Skeleton, Gantt), so dashboards, foldout record pages, hero/welcome pages and Gantt timelines defined with the archetypes render natively on the desktop too. MetricCard and EmptyState actions dispatch through the same mechanism as buttons.

Dependencies: JavaFX 21 + TiwulFX-Dock (com.panemu:tiwulfx-dock) for the detachable/dockable tabs.

Source: frontend/app/javafx/

Mobile — React Native

The React Native renderer runs your Mateu backend as a native mobile application on iOS and Android. It is built with Expo and TypeScript, and uses React Navigation for screen and drawer management.

How it works:

1. On startup, App.tsx calls initialLoad('') and receives the root component tree.
2. If the root component is of type App, AppRenderer builds the navigation structure — a Drawer for NAVIGATION_LAYOUT/MENU_ON_LEFT variants, a Bottom Tab navigator for TABS, or a simple Stack for MEDIATOR.
3. Each menu entry maps to a content screen that fetches its data on demand.
4. Pages, forms, CRUD tables, and individual fields are rendered as native React Native components (TextInput, Switch, FlatList, TouchableOpacity, etc.).
5. The dashboard/display components are supported too: MetricCard, Scoreboard, DashboardPanel, DashboardLayout (rendered mobile-first as a single-column stack with the KPI band on top), FoldoutLayout (overview card + accordion of panels), HeroSection, EmptyState, Skeleton, and Gantt (horizontal-scrollable timeline with proportional bars, progress fill, and today marker).

Key files:

File	Role
App.tsx	Entry point — initial load and root component dispatch
src/api/MateuApiClient.ts	HTTP client — calls POST /mateu/v3/sync/{route}
src/context/AppContext.tsx	React context — holds navigate(), runAction(), and app state
src/renderer/AppRenderer.tsx	Builds navigation structure from app metadata
src/renderer/PageRenderer.tsx	Renders pages with header, toolbar, children, and buttons
src/renderer/FormRenderer.tsx	Renders forms with scrollable field list
src/renderer/FormFieldRenderer.tsx	Renders individual fields (text, boolean, options, password, numbers)
src/renderer/CrudRenderer.tsx	Renders tables with search, pagination, and row navigation
src/renderer/ComponentRenderer.tsx	Dispatcher — routes each component node to the right renderer
src/renderer/LayoutRenderer.tsx	Renders horizontal and vertical layouts
src/renderer/DashboardRenderer.tsx	Renders MetricCard, Scoreboard, DashboardPanel, DashboardLayout
src/renderer/DisplayRenderer.tsx	Renders FoldoutLayout, HeroSection, EmptyState, Skeleton, Gantt
src/api/metadata.ts	TypeScript wire types for the dashboard/display component metadata

Source: frontend/app/react-native/

To run:

cd frontend/app/react-native
# edit MATEU_CONFIG in App.tsx to point to your backend
npx expo start --port 8084

Scan the QR code with Expo Go on your phone, or press i for iOS simulator / a for Android emulator.

Desktop & mobile — Compose Multiplatform

The Compose renderer is a single Compose Multiplatform (Kotlin) codebase that runs as a native desktop app (Windows/macOS/Linux, JVM) and as a native mobile app on iOS and Android — the same UI, compiled to each platform. Where the JavaFX + React Native pair is two separate codebases (one per form factor), this is one.

How it works: like every Mateu renderer it calls POST /mateu/v3/sync/{route}, receives the component tree, and renders it — here with native Compose widgets. All rendering logic lives in commonMain and is shared verbatim across targets; each platform only provides a tiny entry point and an HTTP engine.

The Compose renderer also covers the UX-pattern components (MetricCard, Scoreboard, DashboardPanel, DashboardLayout, FoldoutLayout, HeroSection, EmptyState, Skeleton, Gantt), so dashboards, foldout record pages, hero/welcome pages and Gantt timelines defined with the archetypes render natively on desktop and mobile too (shared ui/UxRenderers.kt, used by both the Material 3 and the desktop Jewel dispatchers). MetricCard and EmptyState actions dispatch through the same mechanism as buttons; the foldout’s open/closed state is local UI state, exactly like the web’s mateu-foldout.

Responsive UI — the same screens adapt to the form factor:

• On wide (desktop) viewports the left menu is an inline sidebar and CRUD listings render as a table.
• On narrow (phone) viewports the menu becomes an overlay drawer (hamburger toggle) and CRUD listings render as cards (one per row). Forms drop to a single column. The breakpoint is 600 dp.

Key files (under frontend/app/compose/src/):

File	Role
commonMain/.../api/MateuApiClient.kt	HTTP client — Ktor + kotlinx.serialization; expect fun createHttpClient()
commonMain/.../state/AppState.kt	Session state holder — observable content slots, navigation, action dispatch, validation
commonMain/.../ui/MateuApp.kt	Platform-agnostic root composable each entry point hosts
commonMain/.../ui/*	The @Composable renderers (App shell, Page, Form, FormField, Crud, layouts…) + Json.kt
desktopMain/.../Main.kt	Desktop entry (Window/application); CIO engine
iosMain/.../MainViewController.kt	iOS entry (ComposeUIViewController); Darwin engine
androidMain/.../MainActivity.kt	Android entry (setContent); OkHttp engine

Run:

cd frontend/app/compose
./gradlew run                 # desktop  (mateu.windowMode=mobile previews the phone UI)
# iOS:     see iosApp/README.md  (xcodegen + an iOS Simulator)
# Android: ./gradlew assembleDebug && adb install … (needs the Android SDK)

Targets desktop / iOS / Android are wired and run today; web (wasmJs) reuses the same commonMain and is the natural next target. Source: frontend/app/compose/ (see its README.md for per-platform run details).

How the renderers relate to the Mateu API

All native renderers implement the same protocol as the web renderers:

POST /mateu/v3/sync/{route}
Body: { route, consumedRoute, actionId, serverSideType,
        initiatorComponentId, componentState, appState, parameters }

This means the same Mateu backend serves web, desktop, and mobile clients simultaneously with no code changes. You choose which renderer (or which combination) fits your deployment.
