Matrix grid

Status: ✅ Implemented

Intent

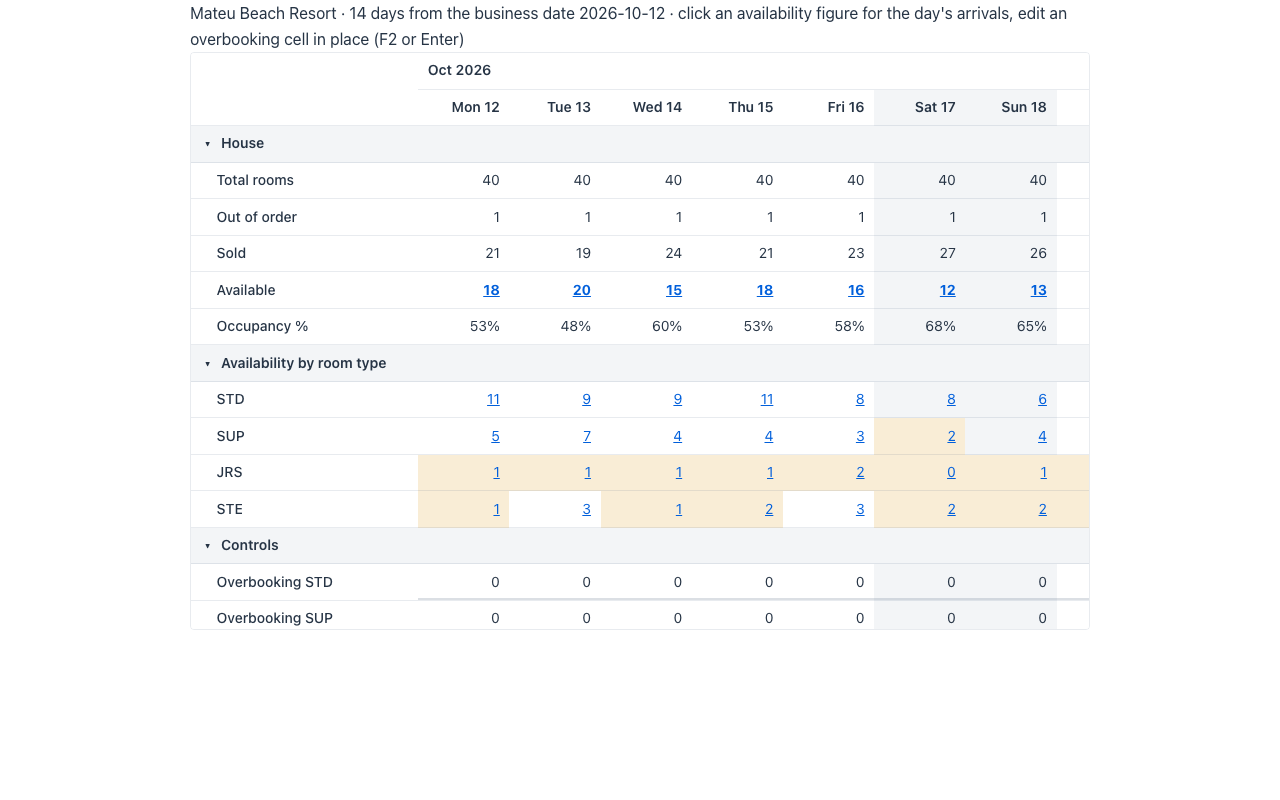

Some screens are not a list of records but a matrix: what you are looking at is a value at the crossing of a row (a metric, a room type, a product) and a column (a date). Hotel availability, a sales forecast, a staffing plan. A listing grid cannot say “click this cell” or “edit the value for Tuesday”, and a form has no columns. OPERA Cloud’s Property Availability is the reference: house totals, availability by room type and controls by date, sections that fold, figures that open the day, and an overbooking row edited in place.

Solution

Return a MatrixGrid:

MatrixGrid.builder()
        .rowHeaderLabel("Room type")
        .cellActionId("openDay")          // a link cell runs it
        .editActionId("setOverbooking")   // an edited cell commits through it
        .columns(dates.stream().map(d -> new MatrixColumn(
                d.toString(), "Sat 17", "Oct 2026", weekend(d) ? "neutral" : null)).toList())
        .sections(List.of(
                MatrixSection.builder().id("types").title("Availability by room type").rows(List.of(
                        MatrixRow.builder().id("STD").label("STD").cells(List.of(
                                new MatrixCell("8", null, true),
                                new MatrixCell("-1", "danger", true))).build())).build(),
                MatrixSection.builder().id("controls").title("Controls").collapsed(true).rows(List.of(
                        MatrixRow.builder().id("ob:STD").label("Overbooking STD").editable(true)
                                .cells(List.of(MatrixCell.of(0), MatrixCell.of(2))).build())).build()))
        .build();

Both actions receive the cell as parameters — _rowId, _columnId, _value — so the @Action method knows which cell it was:

@Action
public Object setOverbooking(HttpRequest rq) {
    var p = rq.runActionRq().parameters();
    overbooking.put(p.get("_rowId") + "@" + p.get("_columnId"), Integer.parseInt((String) p.get("_value")));
    return this;   // re-render: the availability rows recompute
}

The pieces

Record	Holds
MatrixColumn(id, label, group, tone)	consecutive columns with the same group (the month) get a spanning header; tone tints the column (weekends)
MatrixSection(id, title, collapsed, rows)	a collapsible group of rows; a blank title puts its rows at the top level
MatrixRow(id, label, cells, editable, emphasis)	one cell per column (the server pads or cuts to the column count); editable cells are edited in place; emphasis for totals
MatrixCell(value, tone, link)	tone — info, success, warning, danger, neutral — wins over the column’s; link runs cellActionId

Folding sections is client-side state and survives the re-render that follows an edit. An edit that leaves the value unchanged sends nothing.

Where it works

• Redwood (Oracle VB) — painted by JET’s own oj-data-grid over a RowDataGridProvider: the sections are tree rows with JET’s disclosure icons, the month a nested column header, and editing is the grid’s cell edit mode (F2 / Enter / typing; non-editable cells are read-only through cell.editable).
• Vaadin — the shared mateu-matrix-grid element (sticky headers and row labels; double click, Enter or F2 to edit; Escape cancels).
• React Native and the IntelliJ plugin — a fixed label column with horizontally scrolling cells / a JBTable with a row header.
• Also available from the C# (new MatrixGrid { … }) and Python (fluent.MatrixGrid(…)) backends.

Related

• Planning board — resources × days with draggable bars, when the cells are bookings rather than figures
• Editable table — editing records, not a matrix of values
